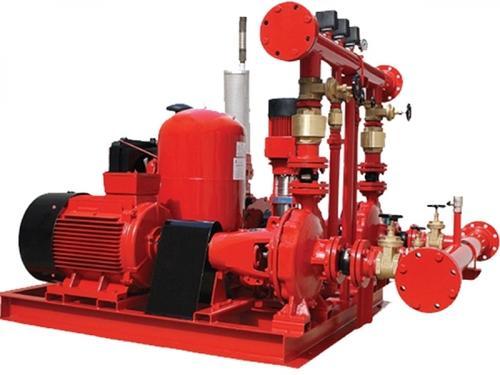

SUPPLY AND INSTALLATION

Electric Fire Pump (NON UL)

Main Electric Motor Driven Pump, horizontal split case pump flexibly coupled to electric motor delivering 500 GPM @ 7 Bar Head

Diesel Fire Pump

Standby Diesel Engine Driven Pump, horizontal split case pump flexibly coupled to diesel engine delivering 500 GPM @ 7 Bar Head to include diesel tank

Jockey Fire Pump

Jockey Pump, Vertical Centrifugal in line Multi stage stainless steel impeller delivering 50 GPM @ 7.5 Bar Head

Fire Pump Control Panel

Complete supply of safety protection for motors to include magnetic contactor, overload protection, under voltage protection, supervisory switch, auto & manual, dry run protection and automatic battery charger for diesel engine and all necessary accessories to complete work

Suction/ Discharge,

Complete supply pipes, fittings, valves, vibration isolator, flexible connector, strainer, pressure gauge.
